Fanless Mini PC with 5 * I226-V 2.5G LANs,Celeron J6413,NO RAM(DDR4) NO SSD(M.2 NVMe),Mini Desktop Computer Support Home Industry Business,4K HD/DP/Type-C Display,2*USB3.0,2*SATA3.0,2 RS232 COM
Product details
| Management number | 239779755 | Release Date | 2026/07/14 | List Price | US$78.40 | Model Number | 239779755 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

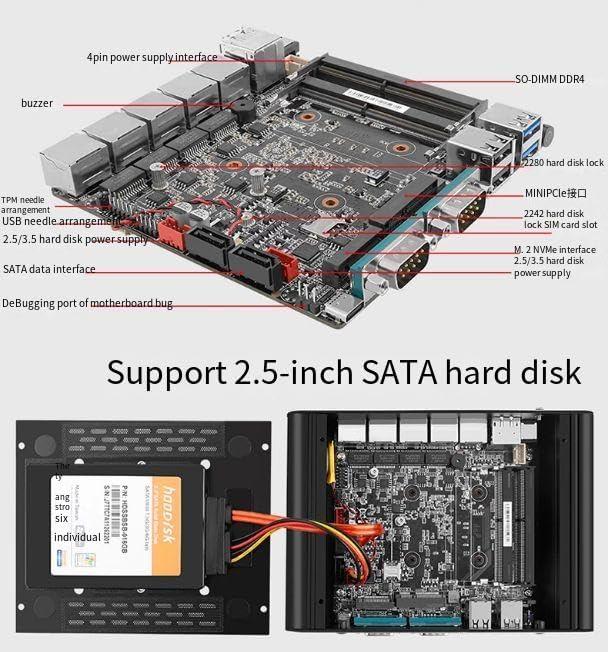

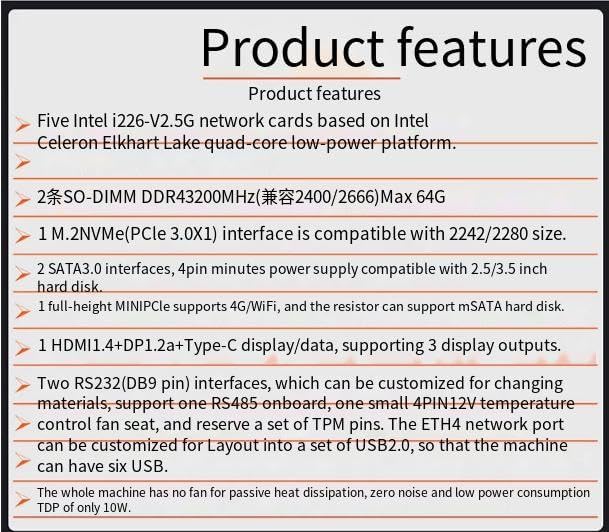

Product Highlight Based on the Celeron Elkhart Lake quad core low-power platform 5 Intel i226-V 2.5G network cards 2 SO-DIMM DDR4 3200MHz (compatible with 2400/2666) Max 64G 1 M.2 NVMe (PCIe 3.0 X1) interface compatible with 2242/2280 sizes 2 SATA3.0 interfaces, 4-pin power supply compatible with 2.5-inch/3.5-inch hard drives 1 full height MINIPCIE supports 4G/WiFi, with resistance changes to support mSATA hard drives 1 HDMI 1.4+DP1.2a+Type-C display/data, supports 3 display outputs 2 RS232 (DB9 pin) interfaces, customizable material modification support 1 RS485 Onboard 1 small 4PIN 12V temperature controlled fan socket with reserved TPM pin set The ETH4 network port can be customized into a set of USB 2.0 layouts, allowing the machine to have 6 USB ports The whole machine has no fan passive cooling, zero noise, and low power consumption TDP of only 10W Size： 178.3mm (length) *126.5mm (width) *55mm (height) working environment ： -0℃ ~+70℃ relative humidity 5%-85%
- ◆Powerful J6413 Processor: J6413 Processor, 4 Cores 4 Threads, 4M Cache,Max Turbo Frequency 3.0 GHz, TDP 10W.Compatible with OPNsense, Windows,Linux, ESXI, OpenWrt and other systems. Press "Delete" key to enter BIOS setup, supports Auto Power On, Wake On Lake, GPIO, PXE
- ◆ Penta Gigabit LAN: Mini Router PC with 5*I226 network card chip full UDE 2.5G with filter connector.Soft Router can monitor network data, improve network security, powerful and widely used. 1 full height MINIPCIE supports 4G/WiFi, with resistance changes to support mSATA hard drives.
- ◆DDR4 Memory & Large Storage Capacity: Firewall box computer with 2 SO-DIMM DDR4 3200MHz (compatible with 2400/2666) Max 64G, 1 M.2 NVMe (PCIe 3.0 X1) interface compatible with 2242/2280 sizes+2 SATA3.0 interfaces.
- ◆UHD Graphics & Triple Display: J6413 processor integrated UHD Graphics, 1 HDMI 1.4+DP1.2a+Type-C display/data, supports 3 display outputs.

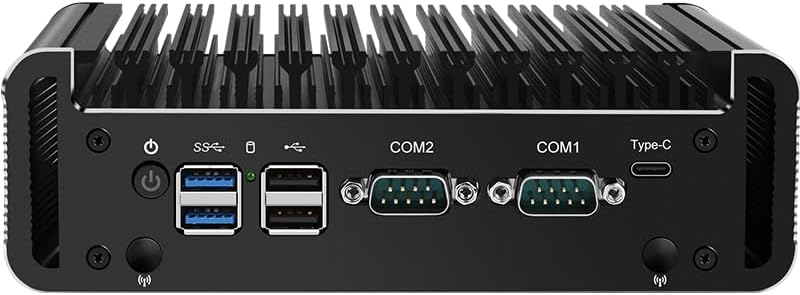

- ◆Rich interfaces: 5 x i226V-LAN,2 xUSB3.0, 2 xUSB2.0,2 RS232 COM,HDMI,DP,Type-C supports data storage and system boot.
| ASIN | B0H2HDPG76 |
|---|---|
| Brand | UDPTCP |
| RAM Type | SODIMM |
| Model Name | CW-FS-J6413-5L |
| Manufacturer | UDPTCP |
| Memory Speed | 3200 MHz |
| Model Number | CW-FS-J6413-5L |
| BuiltIn Media | Water Cooling |
| Cooling Method | Fan |
| Processor Brand | Intel |
| Processor Count | 1 |
| Processor Speed | 1.8 GHz |
| Total Usb Ports | 4 |
| Video Processor | Intel |
| CPU Model Number | J6413 |
| Operating System | Windows |
| Processor Series | Celeron |
| Processor Socket | FCBGA1296 |
| Graphics Ram Type | L2 cache |
| Memory Clock Speed | 3200 GHz |
| Hard Disk Interface | Serial ATA |
| Graphics Coprocessor | Intel UHD Graphics |
| Graphics Description | Integrated |
| HumanInterface Input | Mouse |
| Warranty Description | One year warranty |
| Hard Disk Description | SSD |
| RAM Memory Technology | DDR4 |
| CPU Model Speed Maximum | 3 GHz |
| Graphics Card Interface | Integrated |
| Ram Memory Maximum Size | 32 GB |
| Specific Uses For Product | Everyday Use |
| Display Resolution Maximum | 4096x2160 |
| Total Number of HDMI Ports | 1 |
| Personal Computer Design Type | Mini PC |
